Integration Use Cases
Download Portfolio Integration Guide
1. Enter New Schedule
New lease schedule(s) have been captured in the external system and need to be communicated/transferred into LeaseAccelerator.
Data range/payload allowed: Delta and dump
LeaseAccelerator strongly recommends extracting only new deals from the source system so the payload sent to LeaseAccelerator only includes the new deals.
However, if the payload included deals that already exist in the database, LeaseAccelerator will ignore them.

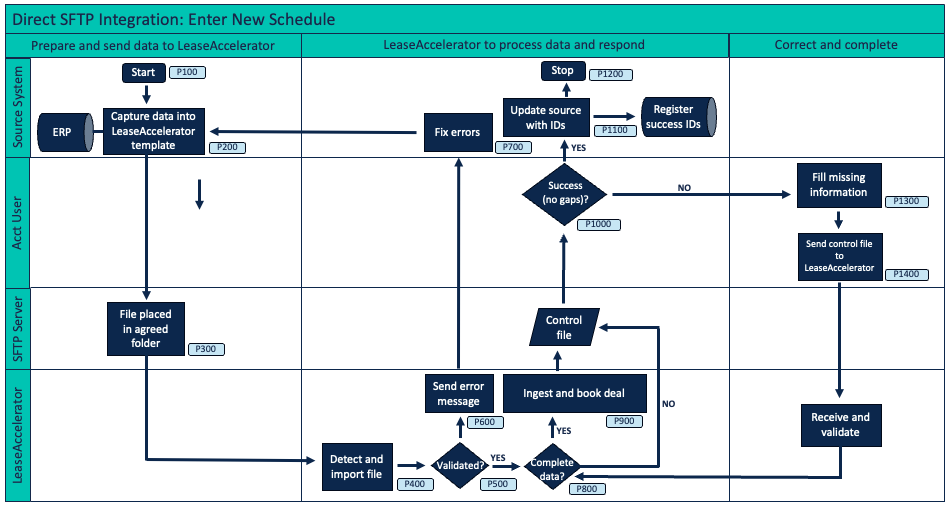

1.1 Enter new schedule SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture new deal data and prepare upload file |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Ingest and book deals |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update source with IDs |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |

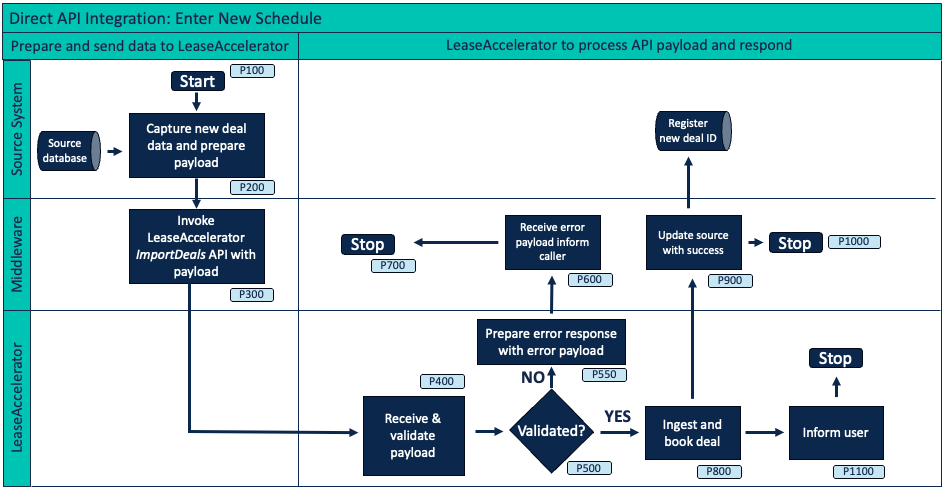

1.1 Enter new schedule – API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture new deal data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorImportDeals API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Ingest and book deal |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
1.2 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, request, and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: ImportDeals +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Data to be loaded into the PIW template. File name: ImportDeals +YYYYMMDDHHMM.xlsx. First row for column names must match the field names listed below. |
NOTE – The data fields available via the XLSX format are listed in detail in the Client Implementation Guide (CIG) and can be found in Ask Alex in the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
2. Correct Asset Details
Asset details were incorrectly entered/captured in the external system and the corrected details need to be updated in LeaseAccelerator. Alternatively, the lessor provided revised asset detail information which has been updated in the external system and needs to be communicated to LeaseAccelerator.
Using an Asset Detail Import is the only way that a user can update all asset details listed on the Details tab of the Portfolio Intake Workbook (PIW), such as ShipTo (or Facility Code), Reference Number, and any financial information for the asset. Unlike the Asset Bundle and the Asset Management Bulk Update Import, which are used to update certain changed information about an asset only, the Asset Detail Import will replace all asset information previously captured in LeaseAccelerator. Essentially, the data is re-imported, not simply adjusted to only include new or changed asset information. Use caution when performing this action. If you forget to list an asset, it will be deleted from LeaseAccelerator. If you do not enter correct cost information, LeaseAccelerator will capture the incorrect cost information provided with this import.
Note: This scenario does not apply to adding or removing assets, nor to updating assets to capture a like-for-like swap. If the schedule has associated journal entries that have been closed in LeaseAccelerator, and the value or calculated rent for the updated assets do not match the value and calculated rent of the assets prior to update, then the update will be rejected, and any changes will need to be communicated to the responsible accounting staff for manual entry into LeaseAccelerator.
Data range / payload allowed: Delta and dump
LeaseAccelerator strongly recommends extracting only assets with corrected details from the source system so the payload sent to LeaseAccelerator includes only the updated assets.
However, if the payload includes assets with non-changing details, LeaseAccelerator will ignore them but trigger the accounting engine to unnecessarily re-run the calculations, affecting performance and reporting availability.
2.1 Correct asset details – SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture correct asset details and prepare upload file |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Apply corrections |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update source with IDs |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |
2.2 Correct asset details – API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture correct asset details and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorImportAssets API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Apply corrections |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
2.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, request, and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: ImportAssets +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: ImportAssets +YYYYMMDDHHMM.xlsx. Sheet name: Details. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: ImportAssets +YYYYMMDDHHMM.csv. The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found on the Details tab of the Portfolio Intake Workbook (PIW) found in Ask Alex in the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
3. Change Key Operational Attributes for Assets
Key operational attributes (asset owner, asset user, serial number, cost center, IP address, etc.) have changed for one or more assets in the external system and need to be communicated to LeaseAccelerator.
Data range / payload allowed: Delta or dump (with warning)
LeaseAccelerator strongly recommends extracting only assets with corrected attributes from the source system so the payload sent to LeaseAccelerator includes only the updated assets.
However, if the payload includes assets with non-changing attributes, LeaseAccelerator will ignore them but will trigger the accounting engine to unnecessarily re-run the calculations, affecting performance and reporting availability.
3.1 Change key operational attributes for assets using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture asset attributes for assets and prepare upload file |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record new attributes and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |

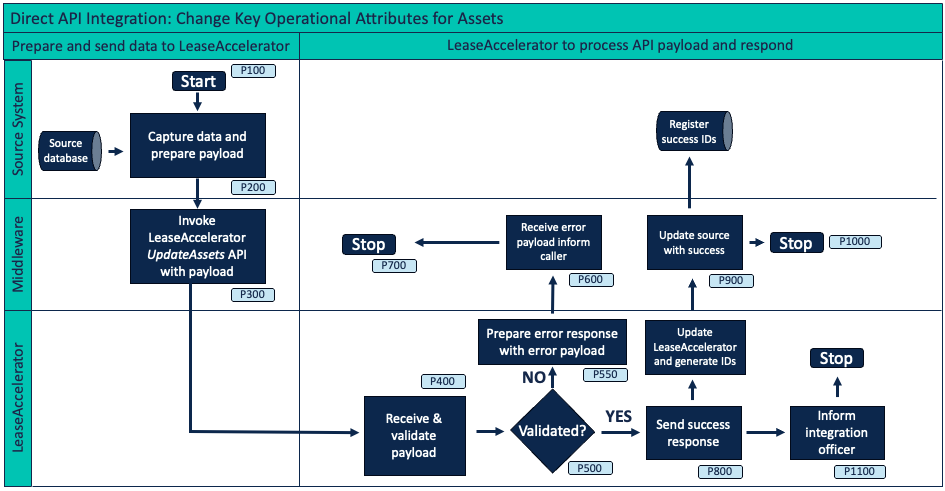

3.1 Change key operational attributes for assets using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorUpdateAssets API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
3.2 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, request, and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: UpdateAssets +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: UpdateAssets +YYYYMMDDHHMM.xlsx. Sheet name: Asset Report. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: UpdateAssets +YYYYMMDDHHMM.csv The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found in the Asset Management Update (AMU) file in Ask Alex on the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
4. Import Invoiced Expenses
An invoice has been received for a Common Area Maintenance (CAMS) charge or other related expense. The invoice has been recorded in the external system but needs to be communicated to LeaseAccelerator. Accounting entries are based on the specific expense type; for items such as CAMS, the journal entries created are expense accruals.
Data range / payload allowed: Delta ONLY
Data should only include unprocessed invoices expenses. Resending previously processed invoices will cause errors.
4.1 Import invoiced expenses using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture expenses in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record expenses and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |
4.2 Import invoiced expenses using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorImportInvoicedExpenses API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
4.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, request, and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: ImportInvoicedExpenses +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: ImportInvoicedExpenses +YYYYMMDDHHMM.xlsx. Sheet name: Invoice Related Expenses. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: ImportInvoicedExpenses +YYYYMMDDHHMM.csv. The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found on the Invoiced Related Expenses tab of the Portfolio Intake Workbook(PIW) in Ask Alex on the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
Invoice related expenses
This tab enables a client to import the actual invoiced amounts for Other Related Expenses. Based on the lease type, these invoiced amounts may generate accounting entries to record expense adjustments. Accounting entries for this tab are based on the specific expense type; for items such as CAMS, the journal entries created are expense accruals.
Please note that the accounting treatment for ARO and End-of-Life is as follows: When Expense Type is ARO-End-of-Life, please note that for SubTypes of Equipment-Refurbishment and Real Estate - Return to Original Condition, LeaseAccelerator will generate Asset Retirement Obligations (ARO) accounting. For SubType of Cost to Dismantle or Remove (per Agreement), LeaseAccelerator will generate End-of-Life accounting which is added to the payment schedule.
5 Import Paid Expenses
An invoice has been paid for CAMS charge or other related expense. The payment has been recorded in the external system but needs to be communicated to LeaseAccelerator. The journal entries will reverse the expense accruals created from the Invoiced Related Expense tab (if matched based on Invoice Number and Invoice Date) and record the expense recognition based on the amount approved for payment.
Data range / payload allowed: Delta ONLY
Data should only include unprocessed invoices expenses. Resending previously processed invoices will cause errors.
5.1 Import paid expenses using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture expenses in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record expenses and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |

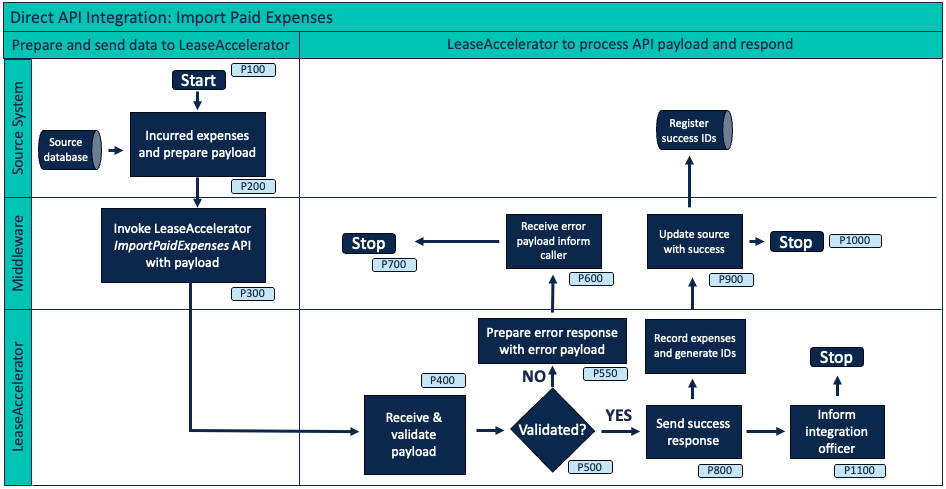

5.2 Import paid expenses using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorImportPaidExpenses API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
5.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, Request and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: ImportPaidExpenses +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: ImportPaidExpenses +YYYYMMDDHHMM.xlsx. Sheet name: Paid Related Expenses. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: ImportPaidExpenses +YYYYMMDDHHMM.csv The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found on the Paid Related Expenses tab of the Portfolio Intake Workbook (PIW) in Ask Alex in the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
This tab enables a client to import the actual paid amounts for Other Related Expenses, which are approved for payment and sent to Accounts Payable. Based on the lease type, these invoiced amounts may generate accounting entries to record expense adjustments. Accounting entries for this tab are based on the specific expense type; for items such as CAMS, the journal entries will reverse the expense accruals created from the Invoiced Related Expense tab (if matched based on Invoice Number and Invoice Date) and record the expense recognition based on the amount approved for payment. Please note that the accounting treatment for ARO and End-of-Life is as follows: When Expense Type is ARO-End-of-Life, please note that for SubTypes of Equipment-Refurbishment and Real Estate - Return to Original Condition, LeaseAccelerator will generate Asset Retirement Obligations (ARO) accounting. For SubType of Cost to Dismantle or Remove (per Agreement), LeaseAccelerator will generate End-of-Life accounting which is added to the Payment Schedule.
6 Adjust Payment Amount
The payment amount for a schedule has changed, either because of a routine adjustment due to fluctuations in the underlying index rate, resolution of a contingency, or a scheduled step payment (e.g. automatic escalation clause). This change in payment needs to be communicated to LeaseAccelerator.
Data range / payload allowed: Delta or Dump (with warning)
LeaseAccelerator strongly recommends extracting only new payment adjustments from the source system so the payload sent to LeaseAccelerator includes only the unprocessed payment adjustments.
However, if the payload includes assets previously processed through payment adjustments, LeaseAccelerator will ignore them but will trigger the accounting engine to unnecessarily re-run the calculations, affecting performance and reporting availability.

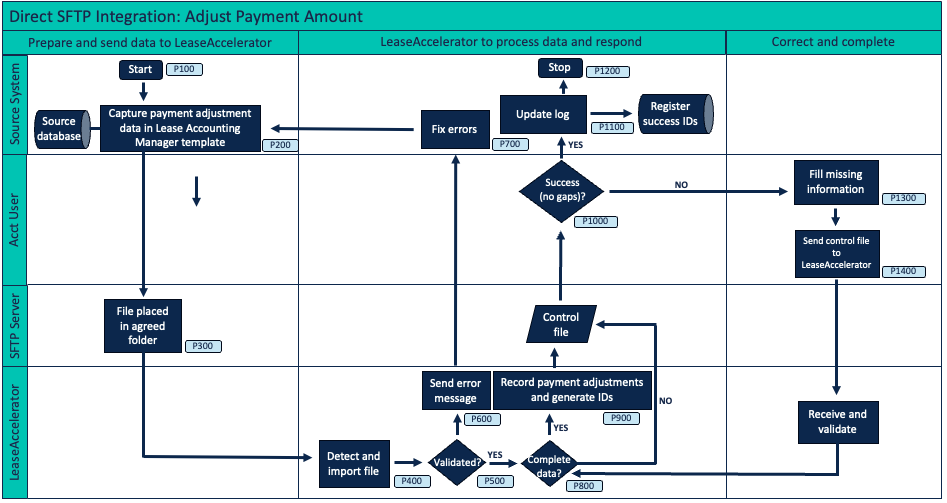

6.1 Adjust payment amount using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture payment adjustment data in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record payment adjustments and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |

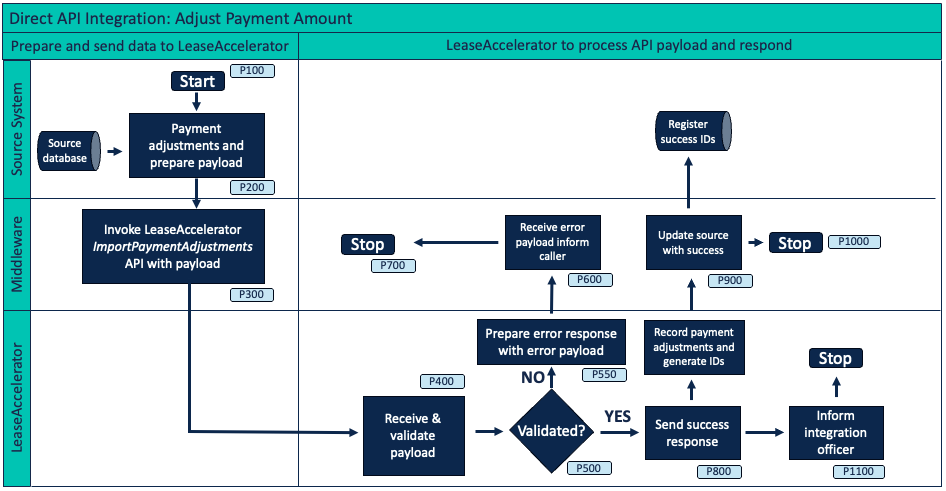

6.2 Adjust payment amount using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorImportPaymentAdjustments API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
6.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, Request and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: ImportPaymentAdjustments +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: ImportPaymentAdjustments +YYYYMMDDHHMM.xlsx. Sheet name: Payment Adjustments. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: ImportPaymentAdjustments +YYYYMMDDHHMM.csv The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found on the Payment Adjustments tab of the Portfolio Intake Workbook (PIW) in Ask Alex of the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
7 Swap Like-for-Like Assets
One or more assets have been exchanged for assets of comparable value on a like-for-like basis, and the updated asset information needs to be communicated to LeaseAccelerator.
Note: If the schedule has associated journal entries that have been closed in LeaseAccelerator, and the value or calculated rent for the updated assets do not match the value and calculated rent of the assets prior to update, then the update will be rejected, and any changes will need to be communicated to the responsible accounting staff for manual entry into LeaseAccelerator.
Data range / payload allowed: Delta or dump (with warning)
LeaseAccelerator strongly recommends extracting only swapped assets from the source system so the payload sent to LeaseAccelerator includes only the swapped assets.
However, if the payload includes previously processed swapped assets, LeaseAccelerator will ignore them but will trigger the accounting engine to unnecessarily re-run the calculations, affecting performance and reporting availability.
7.1 Swap like-for-like assets – Using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture swap data in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record swap and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |
7.2 Swap like-for-like assets – using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture swap data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorUpdateAssets API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
7.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, Request and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: UpdateAssets +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: UpdateAssets +YYYYMMDDHHMM.xlsx. Sheet name: Asset Report. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: UpdateAssets +YYYYMMDDHHMM.csv????? The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found in the Asset Management Update (AMU)file in Ask Alex on the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
8 Renew assets
The lease obligation for one or more assets has been extended, either for a fixed term, or indefinitely (evergreen/month-to-month). This extension has been captured in the external system but needs to be communicated to LeaseAccelerator.
Data range / payload allowed: Delta ONLY
Data should include unprocessed renewed assets only. Resending previously processed renewed assets will cause errors.
8.1 Renew assets – using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture asset renewal data in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record renewals and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |
8.2 Renew assets – using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture renewal data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorRecordAssetEvent API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
8.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, Request and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: RecordAssetEvent +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: RecordAssetEvent +YYYYMMDDHHMM.xlsx. Sheet name: Advanced Form. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: RecordAssetEvent +YYYYMMDDHHMM.csv The first row of csv files must include the field names as headers separated by commas. |
Note: The data fields available via the XLSX and CSV formats can be found in the Bulk Import Record Asset Event template in Ask Alex on the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
9 Buyout or Return Assets
One or more assets have been returned or bought out, thus ending the lease obligation for those assets. This termination has been captured in the external system but needs to be communicated to LeaseAccelerator.
Data range / payload allowed: Delta ONLY
Data should include unprocessed assets only. Resending previously processed assets will cause errors.

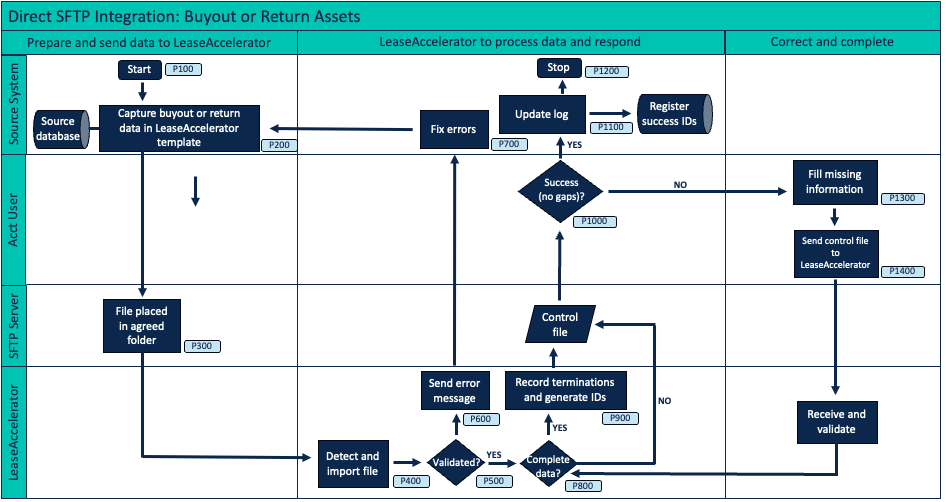

9.1 Buyout or return assets – using SFTP
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture asset buyout or return data in LeaseAccelerator template |
Source system user |
P300 |
File placed in agree folder |
SFTP server |
P400 |
Detect and import file |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P600 |
Send error message |
LeaseAccelerator |
P700 |
Fix errors |
Source system |
P800 |
Complete data? |
LeaseAccelerator |
P900 |
Record terminations and generate IDs |
LeaseAccelerator |
P1000 |
Success with no gaps? |
Accounting user |
P1100 |
Update log |
Source system |
P1200 |
Stop |
Source system |
P1300 |
Fill missing information |
Accounting user |
P1400 |
Send control file to LeaseAccelerator |
Accounting user |
P1400 |
Receive and validate |
LeaseAccelerator |

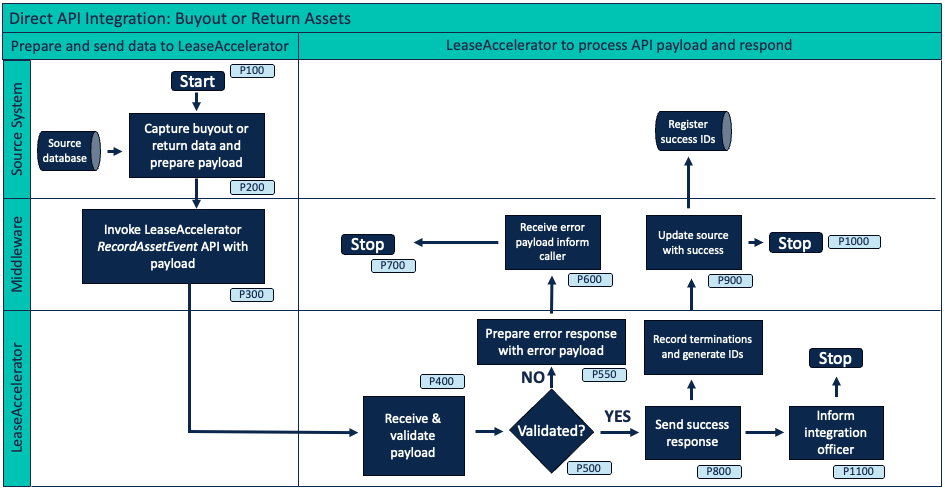

9.2 Buyout or return assets – using API
Process Step ID |
Process Step Description |
Phase |
|---|---|---|
P100 |
Start |
Source system user |
P200 |
Capture buyout or return data and prepare payload |
Source system user |
P300 |
Invoke LeaseAcceleratorRecordAssetEvent API with payload |
Middleware |
P400 |
Receive and validate payload |
LeaseAccelerator |
P500 |
Valid? |
LeaseAccelerator |
P550 |
Prepare error response with error payload |
LeaseAccelerator |
P600 |
Receive error payload and inform caller |
Middleware |
P700 |
Stop |
Middleware |
P800 |
Send success response |
LeaseAccelerator |
P900 |
Update source with success |
Middleware |
P1000 |
Stop |
Middleware |
P1100 |
Inform user |
LeaseAccelerator |
9.3 Data fields, format, and structure
Method |
Format |
Procedure/Usage |
|---|---|---|
API |
XML |
Please refer to API user guide for invoke process, request, and response parameters. |
SFTP |
XML |
Same structure as API / XML payload. File name: RecordAssetEvent +YYYYMMDDHHMM.xml |
SFTP |
XLSX |
Workbook name: RecordAssetEvent +YYYYMMDDHHMM.xlsx. Sheet name: Advanced Form. First row for column names must match the field names listed below. |
SFTP |
CSV |
File name: RecordAssetEvent +YYYYMMDDHHMM.csv. The first row of csv files must include the field names as headers separated by commas. |
The data fields available via the XLSX and CSV formats can be found in the Bulk Import Record Asset Event template in Ask Alex on the LeaseAccelerator UI. Fields for XML are very similar and are discussed in detail in the API Developer’s Guide. | ||
