Master (Configuration) Data Integration

Download Enterprise Integration Guide

LeaseAccelerator classifies the configuration data (master data) into three “classes”. Members of each class are of the same “nature” so they “share” the same attributes. Each member of a certain class may have one or more “roles” when allowed. A member of a class may have a parent or its own role or another role whenever allowed.

For example, the “People class” is used to store information of all humans dealing with LeaseAccelerator though each member may have different role(s) such as: system user, asset user, asset owner, etc., but since they are all “human” they are included under the “People” class and they share common attributes such as e-mail address, telephone number, etc.

1 - Companies Class:

The “Companies” class defines those entities that are part of your leasing program. Each “company” however may perform one or more role(s) or function(s) – if applicable. Companies class include lessees, funders, business entities, business units, vendors, and cost centers.

2 – People Class:

Many people participate in your leasing program and have different roles. These people may or may not be users of the system. LeaseAccelerator has a dedicated class for “people” to capture information about these people so that they can receive notifications or other information important to their function. Examples of the roles that people may play and therefore need to be configured in the system are: Asset Owners, Asset Users, Order Administrators, Analysts, Finance Approvers, etc.

3 – Addresses Class:

Addresses are specific significant locations in your organization. These addresses can be workplaces, physical location of leased equipment, a shipped to address or the physical location of real estate.

Companies class integration

The “Companies” class defines those entities that are a part of your leasing program. Each “company” however may perform one or more role(s) or function(s) – if applicable. Companies class include:

Lessees: The legal party to the agreement who are leasing the equipment or renting the real estate
Funders: Also referred to as lessors: they provide the cash to finance the equipment purchase through a lease agreement
Entity: Organization you consider to be the Lessee (may be different than actual Lessee)
Business Units (SBU): An internal reporting group
Vendors: Various other parties such as the equipment manufacturer or supplier, an assignee, or an organization to whom you pay an initial direct cost to or receive a lease incentive from

All members of Companies class share the same attributes (see Data Mapping for details).

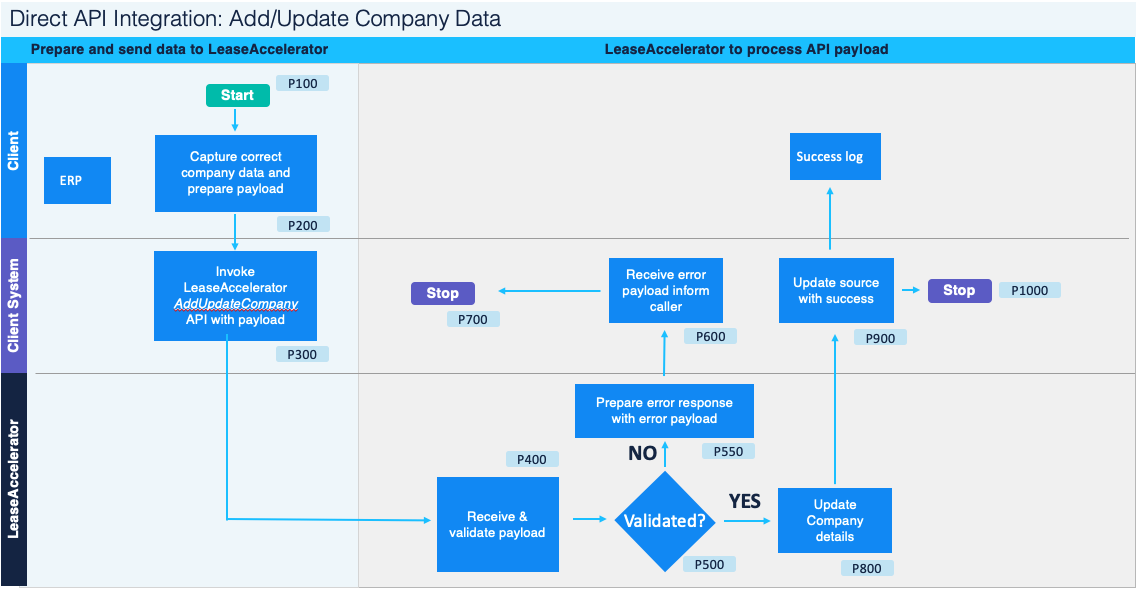

Adding and updating companies process flow

Process Step ID	Process Step Description	Phase
100	Start	Source system user
200	Capture Companies data and prepare payload	Source system user
300	Invoke LeaseAccelerator AddUpdateCompany API with payload	Middleware
400	Receive & validate payload	LeaseAccelerator
500	Valid?	LeaseAccelerator
550	Prepare error response with error payload	LeaseAccelerator
600		Middleware
700	Stop	Middleware
800	Add /Update Companies details	LeaseAccelerator
900	Update source with success	Middleware
1000	Stop	Middleware

Companies class data mapping

	Field Name	Description	Format	Req’d System Import	Req’d Acctg
1	CompanyRoleType	This is a description of the function that this company plays within your leasing program.	See Data Validation List	Y	Y
2	CompanyName	Name of the entity which you want to use within the system. This may or may not be the official legal name of the entity. This may be a subsidiary of a larger organization.	Alphanumeric (150)	Y	Y
3	ParentCompanyName	The highest organization within a company’s legal structure.	Alphanumeric (150)	N	N
4	URL	Website Address	Alphanumeric (512)	N	N
5	AddressLine1	Street Address	Alphanumeric (250)	N	N
6	AddressLine2	Additional address information such as floor or suite.	Alphanumeric (250)	N	N
7	City	City used by postal service. This may not be the more common name used in conversation.	Alphanumeric (100)	N	N
8	StateProvince	Postal Abbreviation	Alphanumeric (4)	N	N
9	Country	Name	See Data Validation List	N	N
10	PostalCode	Zip Code or other Postal code	Alphanumeric (16)	N	N
11	ContactName	First Name, Last Name of Primary Contact	Alphanumeric (150)	N	N
12	Phone	Telephone number	Numeric (32)	N	N
13	Email	Email address for POC	Alphanumeric (150)	N	N
14	LedgerCode	The code per Chart of Accounts associated with the participant company, if appropriate.	Alphanumeric (32)	N	Y

People class integration

LeaseAccelerator has a dedicated class for “people” to capture information about people who may have specific roles whether they are system users or not.

LeaseAccelerator supports the following classes of people:

Asset Owners: Employees who have fiduciary responsibility for the maintenance and use of the assets. These employees are typically management level and are financially responsible for the equipment.
Asset Users: Employees who have custodial responsibility for the leased assets. These employees may be management or staff level. These employees’ work locations are typically at the equipment’s physical location or in the same area.
Order Administrators: Employees who have “procurement” responsibility for the leased assets, shepherding the administrative process in your organization to finance the acquisition of equipment and securing its delivery to the asset user.
Analysts: Employees responsible for generating the Lease vs. Buy.
Finance Approvers: Employees typically responsible for approving the lease transaction and may be the responsible party signing the lease documents. These employees are typically management or executive level and are an escalation step for notifications regarding End-of-Term.
Sourcing contacts: Employees responsible for initiating and creating an RFP, reviewing the proposals and awarding to a Funder/Lessor.

Please note that a person may be listed multiple times if their role types are different, but the company and address information for that person must be identical. Do not list a person multiple times with the same role type and different companies.

Adding and updating people process flow

Process Step ID	Process Step Description	Phase
100	Start	Source system user
200	Capture People data and prepare payload	Source system user
300	Invoke LeaseAcceleratorAddUpdatePerson API with payload	Middleware
400	Receive & validate payload	LeaseAccelerator
500	Valid?	LeaseAccelerator
550	Prepare error response with error payload	LeaseAccelerator
600	Receive error payload & inform caller	Middleware
700	Stop	Middleware
800	Add /Update People details	LeaseAccelerator
900	Update source with success	Middleware
1000	Stop	Middleware

People class data mapping

People operations have no accounting effect.

#	Field Name	Description	Validation / Valid Values	Format	Required
A	Full Name	First name, Last name		Alphanumeric (150)	Y
B	Person Role Type	The function that a person plays within your leasing program.	See Data Validation List	See Data Validation List	Y
C	Company Name	Employee’s Entity or Business Unit (typically governed by your company’s internal method to commonly reference the organization that an employee is part of).	Must exactly match a value on Companies tab where Company Role Type = Lessee, Entity, Funder, Vendor, or SBU.	Alphanumeric (150)	Y
D	Address Line 1	Street Address	If blank, data from corresponding Company Name on Companies tab will be applied.	Alphanumeric (250)	N
E	Address Line 2	Additional address information such as floor or suite.	If blank, data from corresponding Company Name on Companies tab will be applied.	Alphanumeric (250)	N
F	City	City used by postal service. This may not be the more common name used in conversation.	If blank, data from corresponding Company Name on Companies tab will be applied. Required for LeaseAccelerator users. Defined on LeaseAccelerator Users tab.	Alphanumeric (100)	Y
G	State Province	Postal Abbreviation	If blank, data from corresponding Company Name on Companies tab will be applied.	Alphanumeric (4)	N
H	Country	Postal Abbreviation	If blank, data from corresponding Company Name on Companies tab will be applied. Required for LeaseAccelerator users. Defined on LeaseAccelerator Users tab.	Dropdown	Y
I	Postal Code	Zip Code or other Postal code	If blank, data from corresponding Company Name on Companies tab will be applied.	Alphanumeric (16)	N
K	Phone	Telephone number		Numeric (32)	N
L	Email*	Email address for POC	Valid email address format. Must include @xxx.	Alphanumeric (150)	Y
M	Is User*	Field to define whether this person is a defined user within LeaseAccelerator. By selecting Yes, this person will be provisioned as a user upon import and their username will be everything before the @ sign of their email address.	Yes or No	Dropdown	Y

Addresses class integration

Addresses are specific significant locations in your organization. These addresses can be:

Employees workplace
Physical location of equipment or shipped to
Physical location of leased real estate

Addresses are typically associated with a Lessee, Entity, or Business Unit. (There may be a 1: n relationship because companies may have multiple teams “sitting” at a single location.)

All members of Addresses class share the same attributes (see Configuration Data Mapping for details).

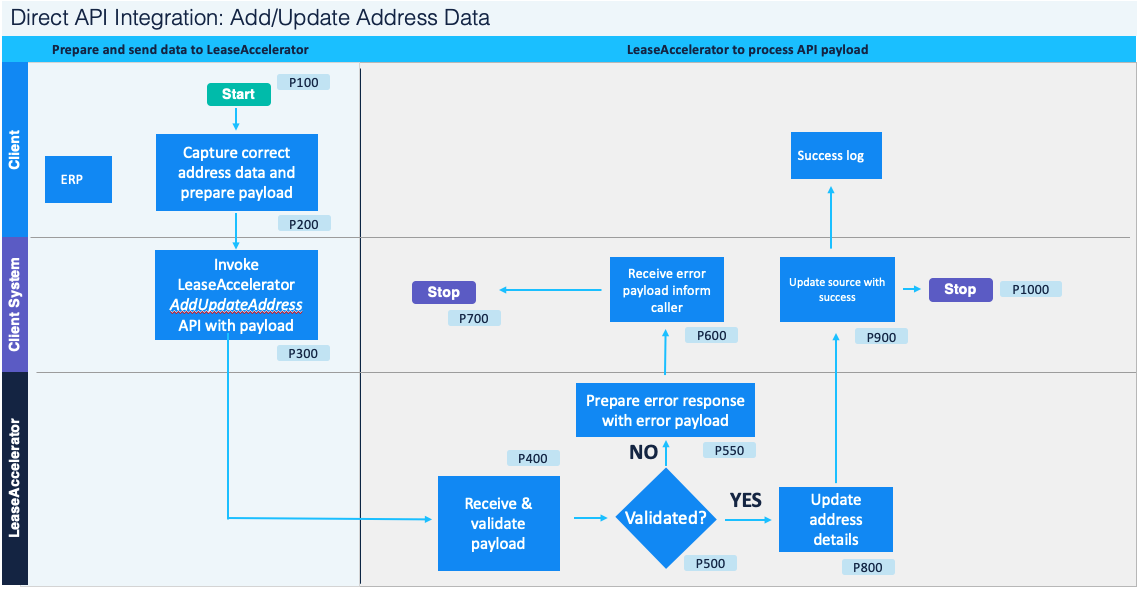

Adding and updating addresses process flow

Process Step ID	Process Step Description	Phase
100	Start	Source system user
200	Capture People data and prepare payload	Source system user
300	Invoke LeaseAcceleratorAddUpdateAddress API with payload	Middleware
400	Receive & validate payload	LeaseAccelerator
500	Valid?	LeaseAccelerator
550	Prepare error response with error payload	LeaseAccelerator
600	Receive error payload & inform caller	Middleware
700	Stop	Middleware
800	Add /Update People details	LeaseAccelerator
900	Update source with success	Middleware
1000	Stop	Middleware

Addresses class data mapping

#	Field Name	Description	Validation / Valid Values	Format	Req’d System Import	Req’d Acctg
1	Address Role Type	The function that this location plays within your leasing program.	See Data Validation List below	Text	Y	Y
2	Company Name	Name of the location used as reference within your company where assets are located.		Alphanumeric (150)	Y	Y
3	Address Line 1	Street Address		Alphanumeric (250)	N	N
4	Address Line 2	Additional address information such as floor or suite.		Alphanumeric (250)	N	N
5	City	City used by postal service. This may not be the more common name used in conversation.		Alphanumeric (100)	Y	N
6	State Province	Postal Abbreviation	Validation to Postal Codes per USPS	Alphanumeric (4)	N	N
7	Country	Postal Abbreviation	See Data Validation List Below	Drop Down	Y	N
8	Postal Code	Zip Code or other Postal code		Alphanumeric (16)	N	N
9	Facility Code	Facility Code (ShipTo Key) is a client code associated with a specific ShipTo Address. Using a Facility Code on the PIW eliminates the need to enter any values in the ShipTo Address fields.	Unique value, code cannot exist in the system already.	Alphanumeric (100)	N	N
10	Ledger Code	The “value” used by your accounting system to identify the work location. Typically, this is one of many portions of an overall General Ledger string.		Alphanumeric (32)	N	Y
